Axis Flanger
- Compact Redesign with Full Features - All the functionality and control of the Carl Martin Classic Flanger condensed into a smaller machined aluminum case (60mm x 115mm x 50mm), making it easy to fit on any pedalboard without sacrificing tonal versatility or performance
- Comprehensive Four-Knob Control - Speed adjusts sweep rate from slow wide stretches to fast Vibe/Leslie effects, Depth controls effect intensity (subtle to extreme), Feedback shapes the characteristic hollow flanging sound and can achieve controlled oscillation, and Pre-Delay sets the tonal flavor by determining frequency emphasis
- Pre-Delay Tone Shaping - Unique Pre-Delay control adjusts the short delay time that defines the flanger's operating range, controlling which frequencies are accentuated or attenuated as the moving filter sweeps, allowing you to dial in flavors from very swirly to rising/sinking curves
- High-Quality Buffered Bypass - Features premium buffer circuitry (not true bypass) that maintains signal integrity and prevents tone loss across your pedalboard, with LED indication for effect status
- Premium Build Quality - Housed in a machined aluminum enclosure finished in bold psychedelic purple with iconic Carl Martin graphics, built with best-in-class components for superior sound quality (52dB S/N ratio, 25mA power consumption)
All about Carl Martin Axis Flanger
The Carl Martin Axis Flanger represents a thoughtful evolution of the beloved Classic Flanger, reimagined for the modern pedalboard without compromise. This compact powerhouse proves that great things come in smaller packages, delivering the full spectrum of flanging effects—from subtle chorusing textures to extreme jet-plane swooshes and psychedelic oscillations—all within a pedalboard-friendly footprint.
At the heart of the Axis Flanger lies four interactive controls that work together to create virtually unlimited modulation possibilities. The Speed control determines how fast the flanger sweeps through its cycle, ranging from ultra-slow, wide stretches perfect for rhythmic textures to fast, warbling Vibe and Leslie-style rotary effects. The Depth knob adjusts the intensity of the effect from subtle shimmer to extreme modulation, working in close tandem with the Feedback control.
The Feedback parameter is where the Axis Flanger's character truly reveals itself. At lower settings, it produces chorus-like sounds with gentle movement. As you increase feedback, the effect takes on that distinctive hollow, ghostly flanging quality, emphasizing certain frequencies while attenuating others. Push both Depth and Feedback toward their maximums, and the pedal enters controlled oscillation territory—perfect for creating wild, sci-fi sound effects where you can manipulate the speed for fast or slow oscillations.
The Pre-Delay control is a sophisticated feature that sets the Axis Flanger apart. This parameter adjusts the short delay time within which the flanger operates, effectively controlling which frequencies the effect accentuates and attenuates. Think of it as the moving filter's sweep range—from very swirly textures to pronounced rising and sinking curves. While the changes may seem subtle, this control is essential for fine-tuning the flanging character to match your instrument, playing style, and musical context.
Built in a compact machined aluminum enclosure finished in eye-catching psychedelic purple, the Axis Flanger makes a statement both sonically and visually. The high-quality buffered bypass (with LED indicator) maintains signal integrity without the potential tone-sucking issues that can occur with some true bypass implementations in complex pedalboard setups.
Designed for players who demand professional-grade modulation in a space-conscious format, the Axis Flanger uses premium components to ensure exceptional sound quality. Whether you're adding subtle movement to clean chords, creating classic rock flanging textures, or exploring experimental sonic territories, this pedal delivers the goods without hogging precious pedalboard real estate.

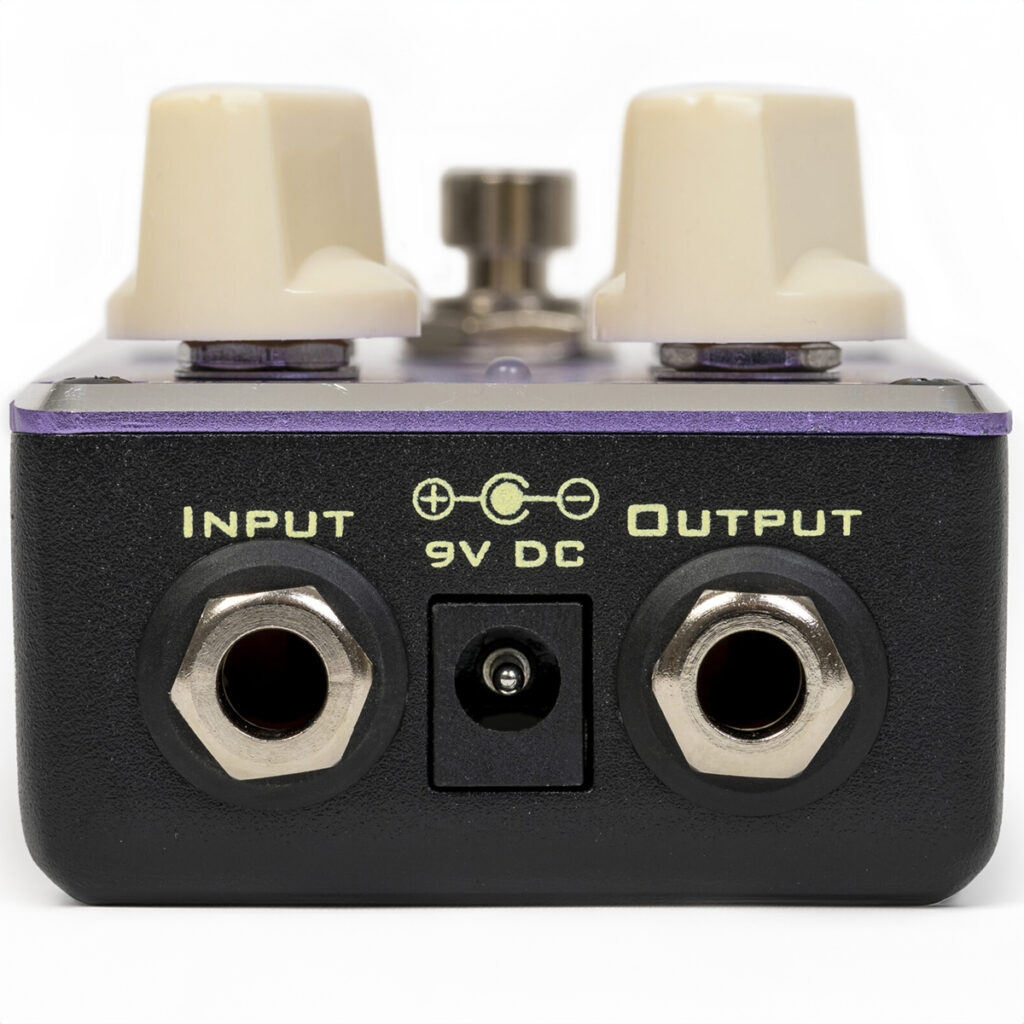

The Axis Flanger requires a regulated 9V DC power supply and is compatible with standard pedalboard power solutions like the Carl Martin DC Factory, consuming a modest 25mA.

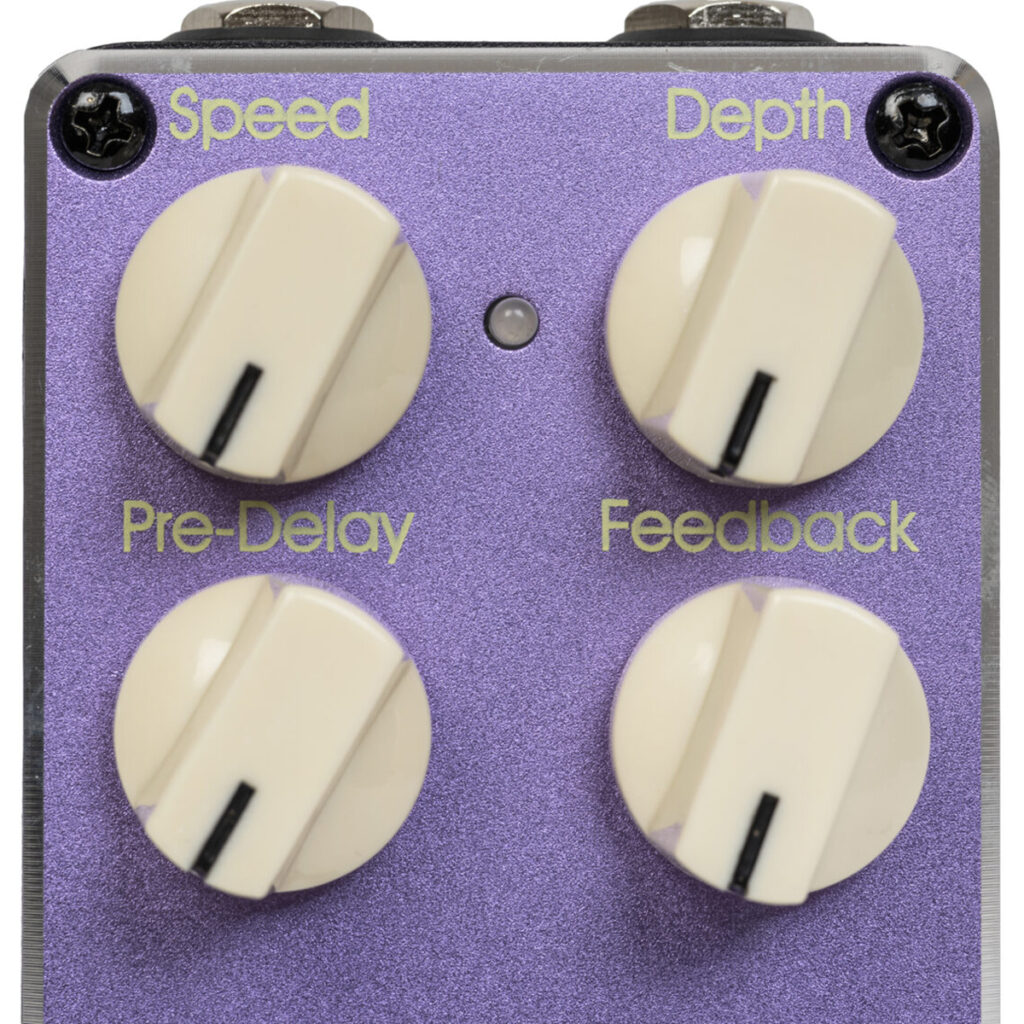

Controls:
- Speed: Sweep rate control (slow wide sweeps to fast Vibe/Leslie effects)
- Depth: Effect intensity (subtle to extreme, works with Feedback)
- Pre-Delay: Sets delay time/frequency emphasis (swirly to rising/sinking curves)
- Feedback: Amount of signal fed back through sweep filter (chorus-like to hollow flanging to oscillation)
- Bypass: Buffered bypass footswitch with LED indicator
